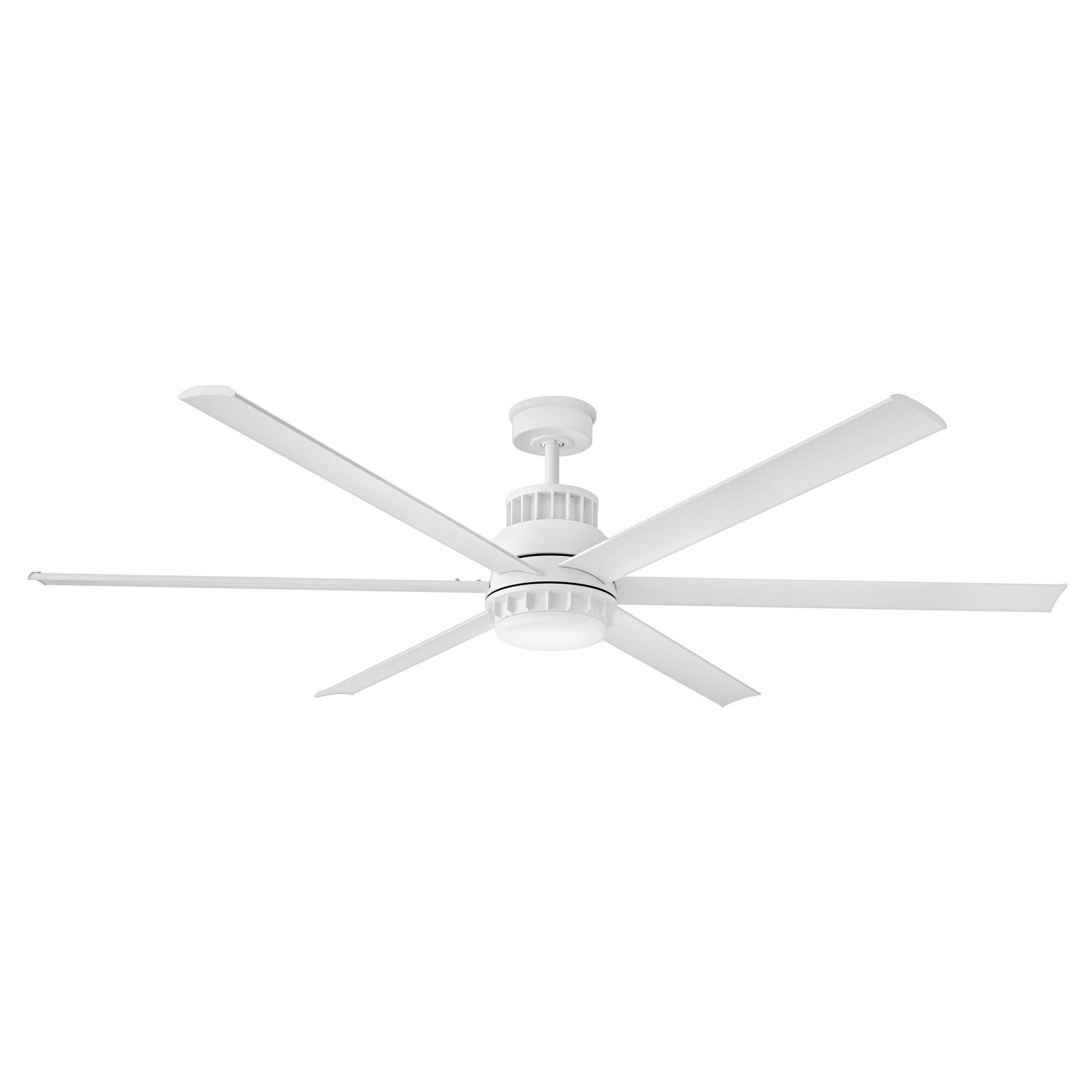

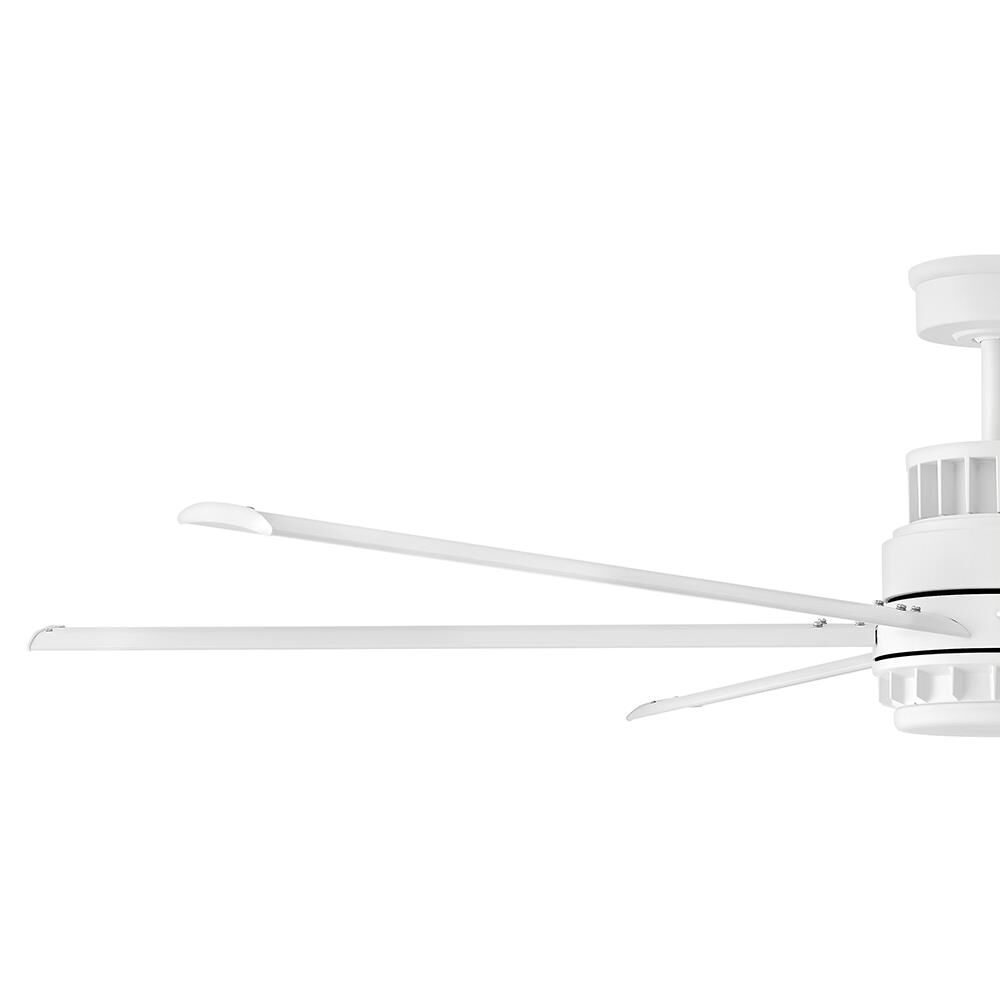

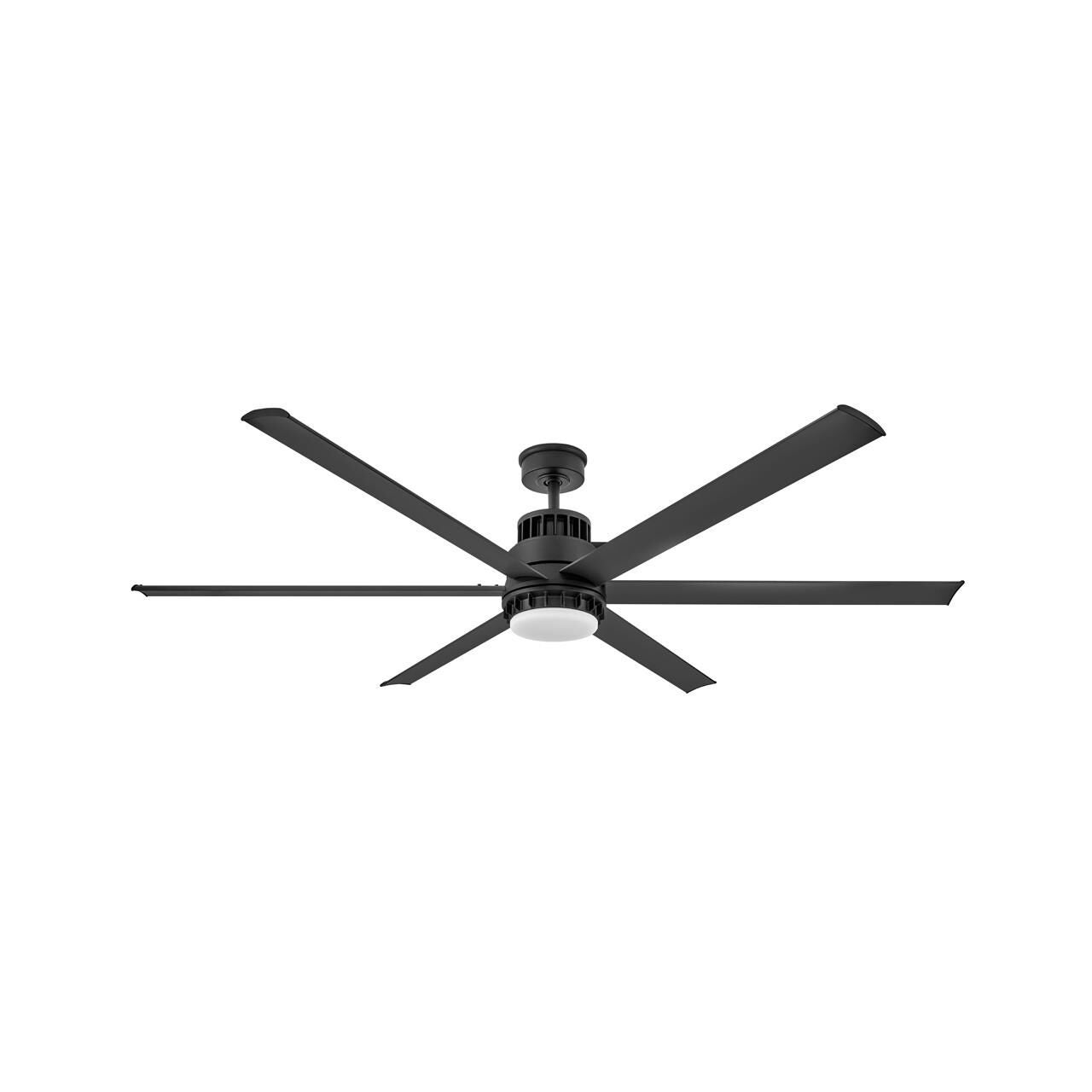

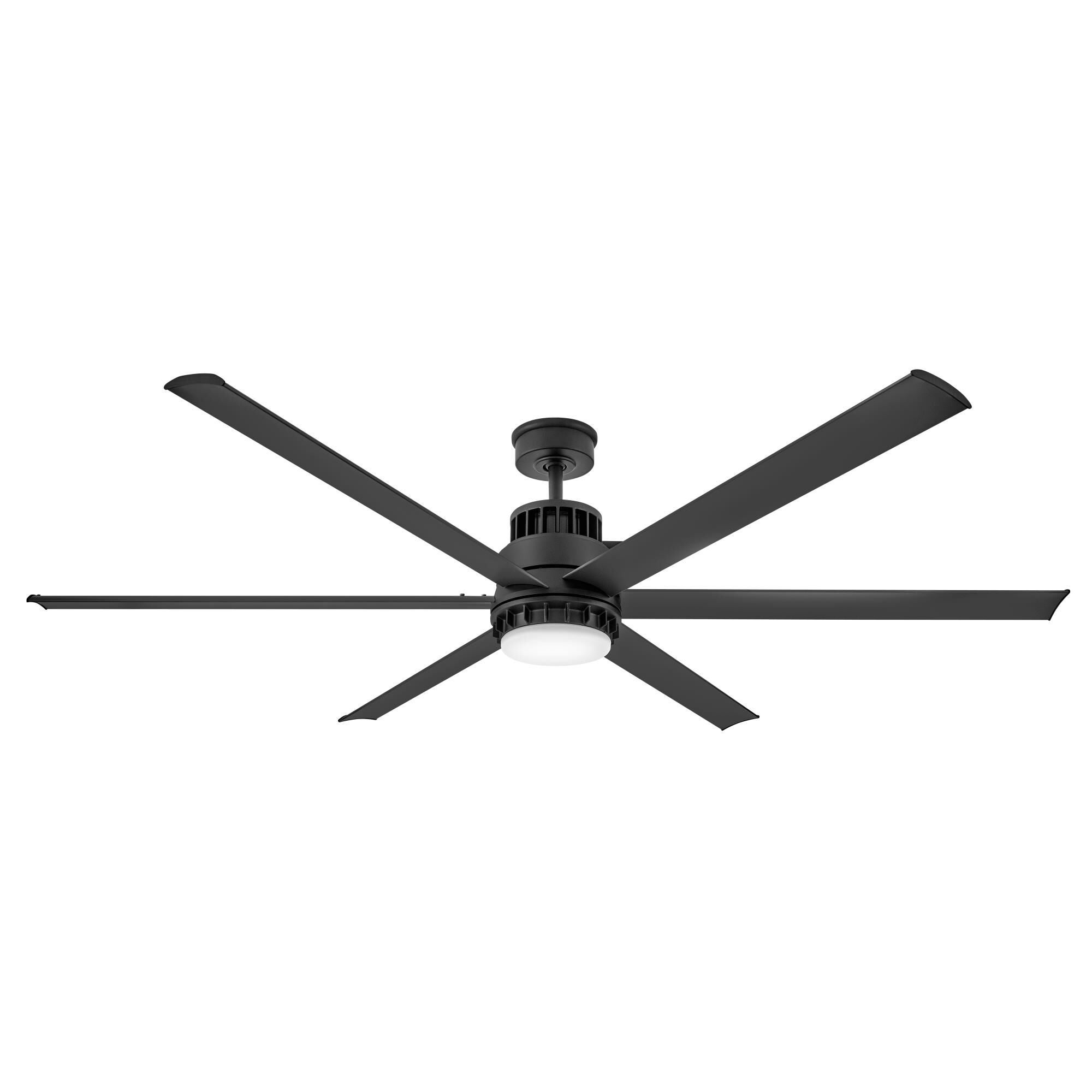

Draftsman Outdoor Rated 72 Inch Ceiling Fan with Light Kit by Hinkley Lighting

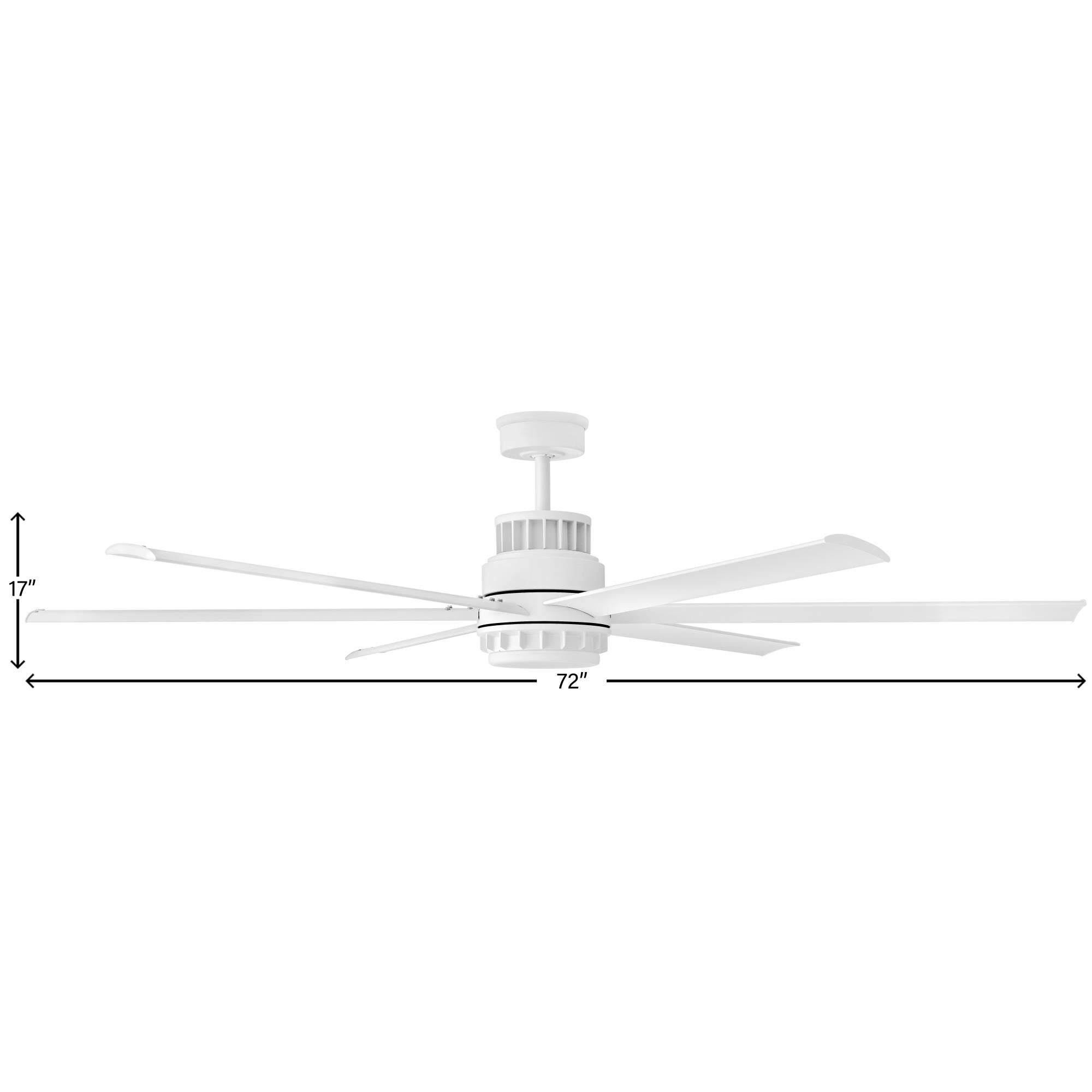

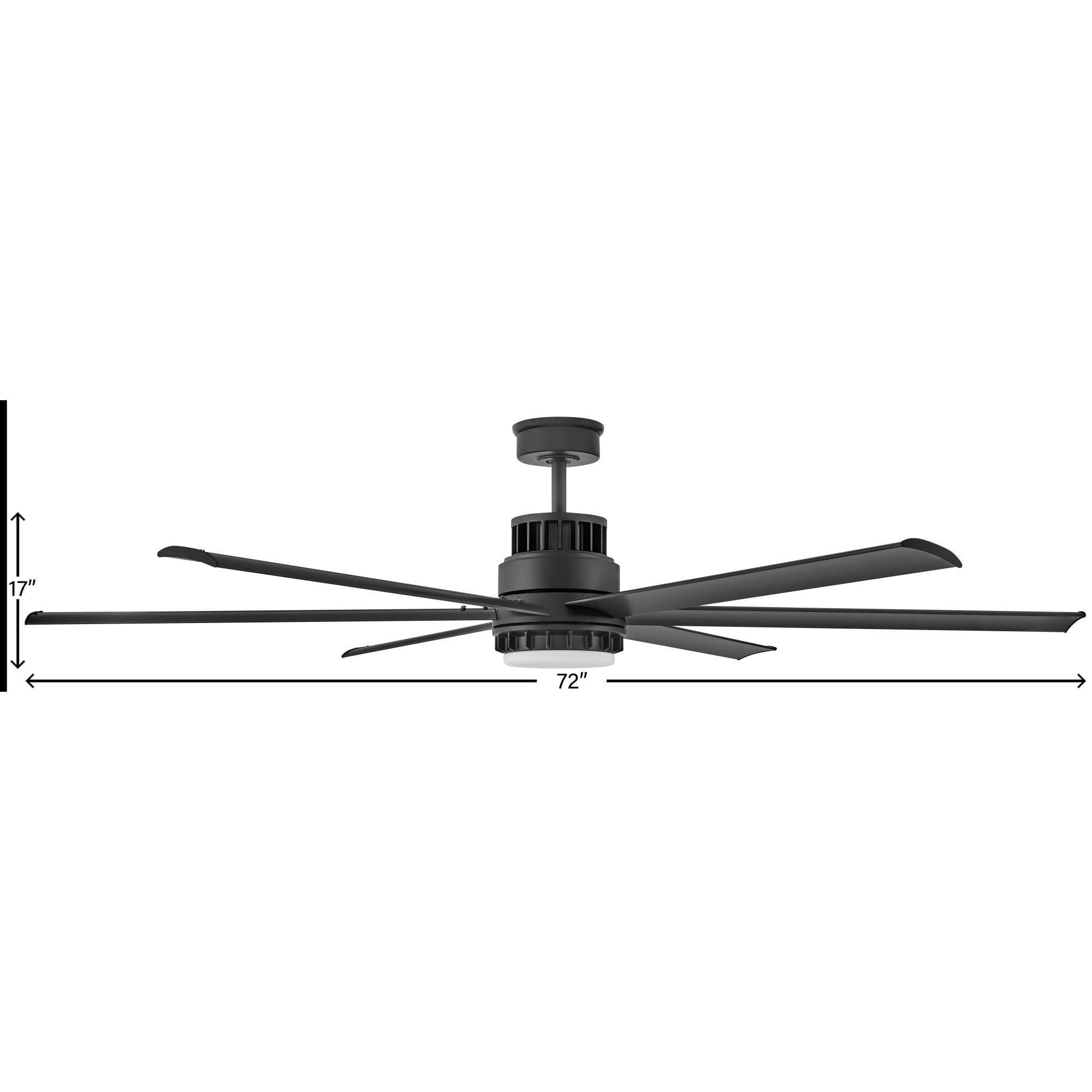

Product Dimensions

Height: 17.0 Inches

Length: 72.00 Inches

Width: 72.0 Inches

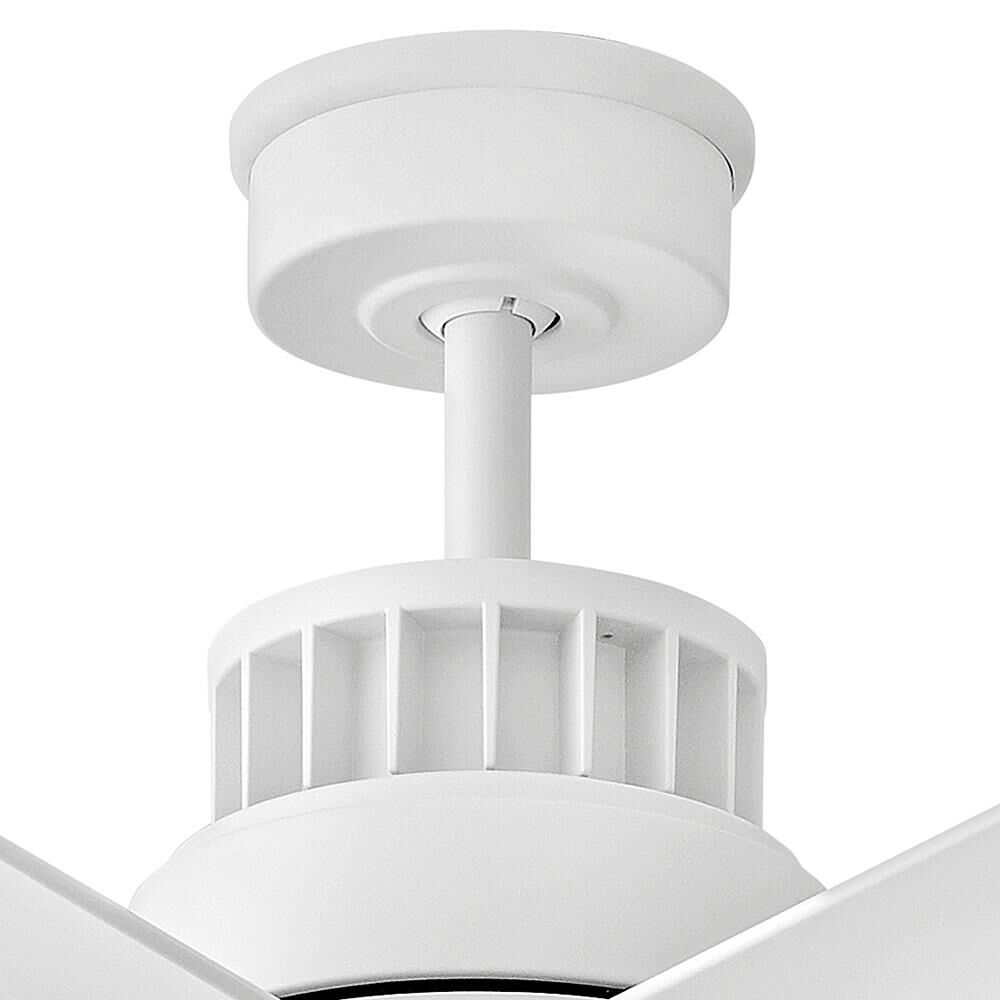

Canopy Length: 6.50 Inches

Fan Specifications

Blade Span: 72.0 Inches

Blade Pitch: 12.00 Degrees

Number of Blades: 6 Blades

Motor Type: DC

Reversible: Yes

Control Type: Remote Control

Control: 6 - Speed Reversible Remote Control

Included Downrods: 6 Inches

Ceiling to Blade Height: 12.75 Inches

Motor Size: 155 X 22 mm

Electricity Use (Mid Speed): 24.00 Watts

Electricity Use (High Speed): 33.70 Watts

Airflow Efficiency (Mid Speed): 305.00 Cubic Feet per Watt per Minute

Airflow Efficiency (High Speed): 294.00 Cubic Feet per Watt per Minute

Airflow (Mid Speed): 7348.00 Cubic Feet per Minute

Airflow (High Speed): 9902.00 Cubic Feet per Minute

RPM (Mid Speed): 82.00

RPM (High Speed): 112.00

Product Documentation

• SPECIFICATION SHEET

Lamping Information

General Lamping Description:

• - LED: 1 Light - LED Integrated 16 Watt (Included)

Certifications and Compliance

UL Rating: Wet

Safety Rating: C-US Wet Rated

Electrical Specifications

Connection Type: Hardwire

Product Highlights

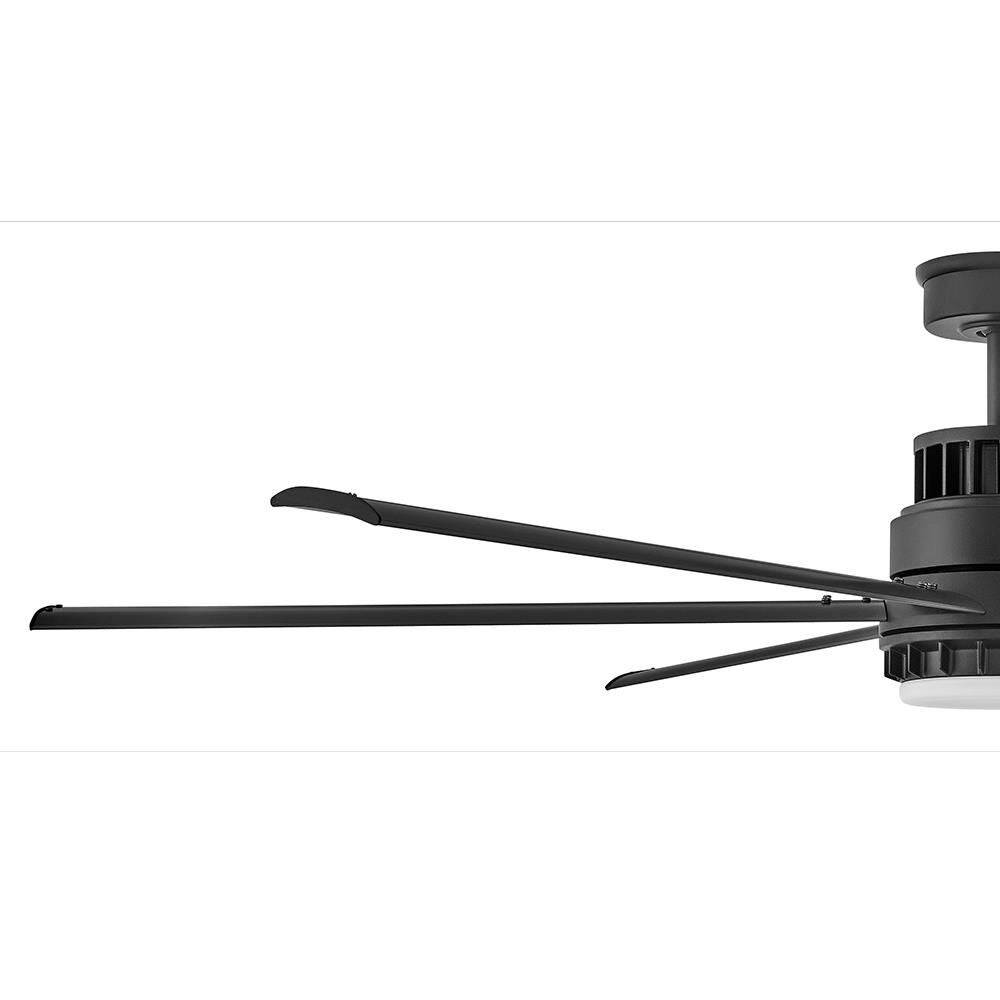

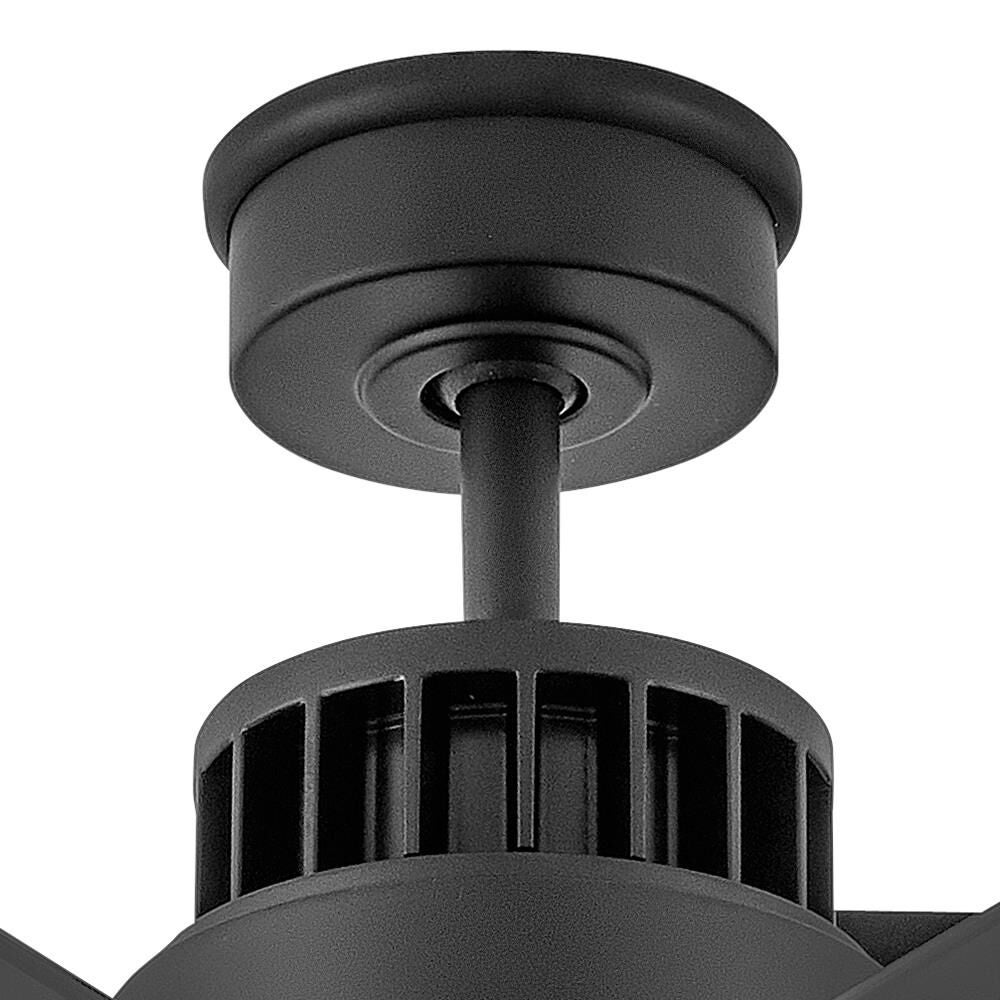

Blade Color: Matte Black

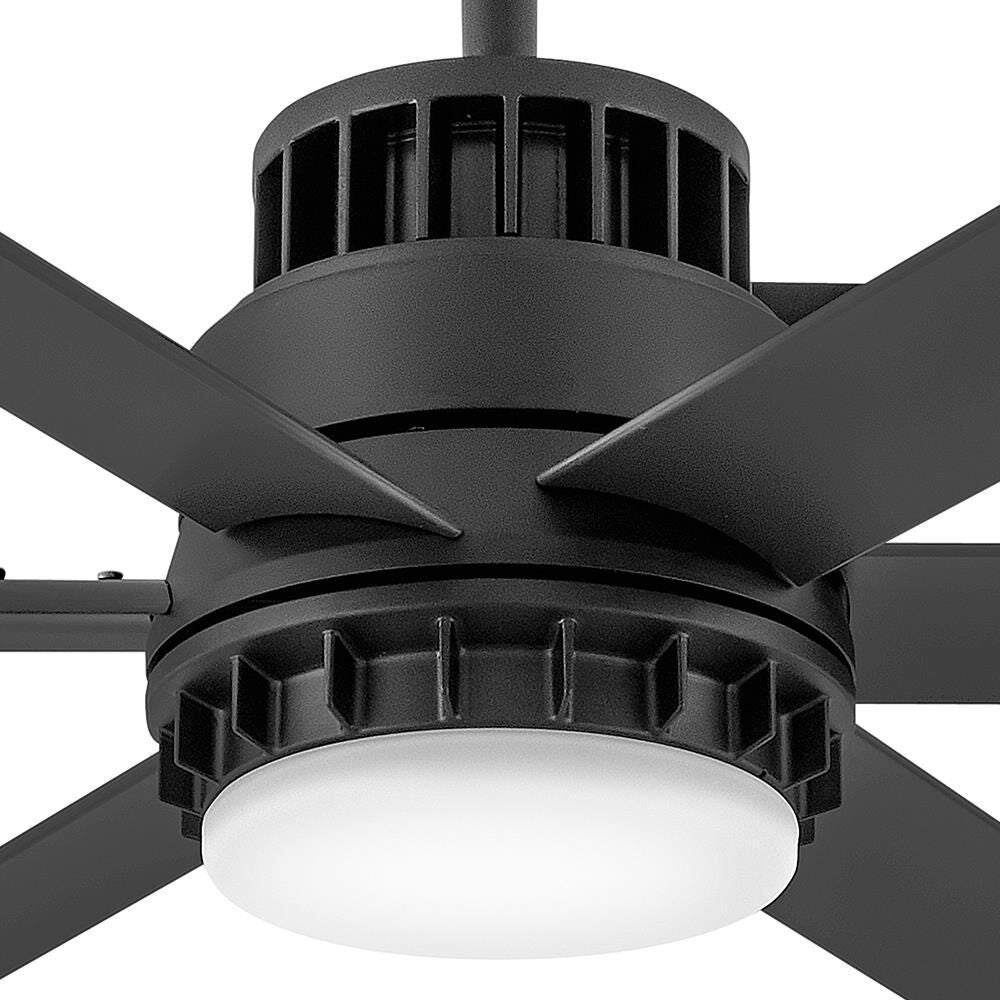

Glass: White Frosted

Lamp Type: LED

Color Temperature: 3000

Lumen Output: 1320
